ITEM NO |

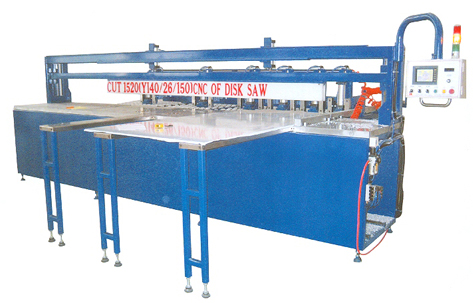

CUT-1520 CNC AUTOMATIC CUTTING MACHINE |
saw/cut ability |
Thickness/150mm |
Width/1520mm |
length/3200mm |
power |
380VAC(50/60 HZ 3-phrase) |
saw blade motor |
10HP |
oil stress up/down |
1HP |
saw blade spec. |
KN-335×050P×3.0/2.5×25.4-D
KN-610×060P×4.0/3.2×25.4-D |
saw blade speed |
2800 RPM |
blade input type |
oil stress motor up/down and high guide rotating ball spiral shaft |
material input type |
air pressure tub with AC serve motor and high guide rotating ball spiral shaft |
auto. input length |
single/automatical(established by operator) |
clean bit equipment |
spiral type |
cooling saw/cut |
air pressure spray |
weight |
3000KG |
size |
length 5100mm×width 3200mm×height 1200mm |
|
主要特点:
平常圆锯片隐身于台面下,启动后升起完成裁切,裁切后圆锯片即降下于台面,此时台面上可马上继续工作,升降进给刀油压控制,安全效率高。
裁切尺寸人机界面数字显示。
台面多组气缸固定工作物裁切时安全准确。
主机马达7.5HP,三相220V,移动刀具马达1HP,减速马达变频器控制速度,高导程滚珠螺杆。
